*Clicca sull' immagine per leggere prova

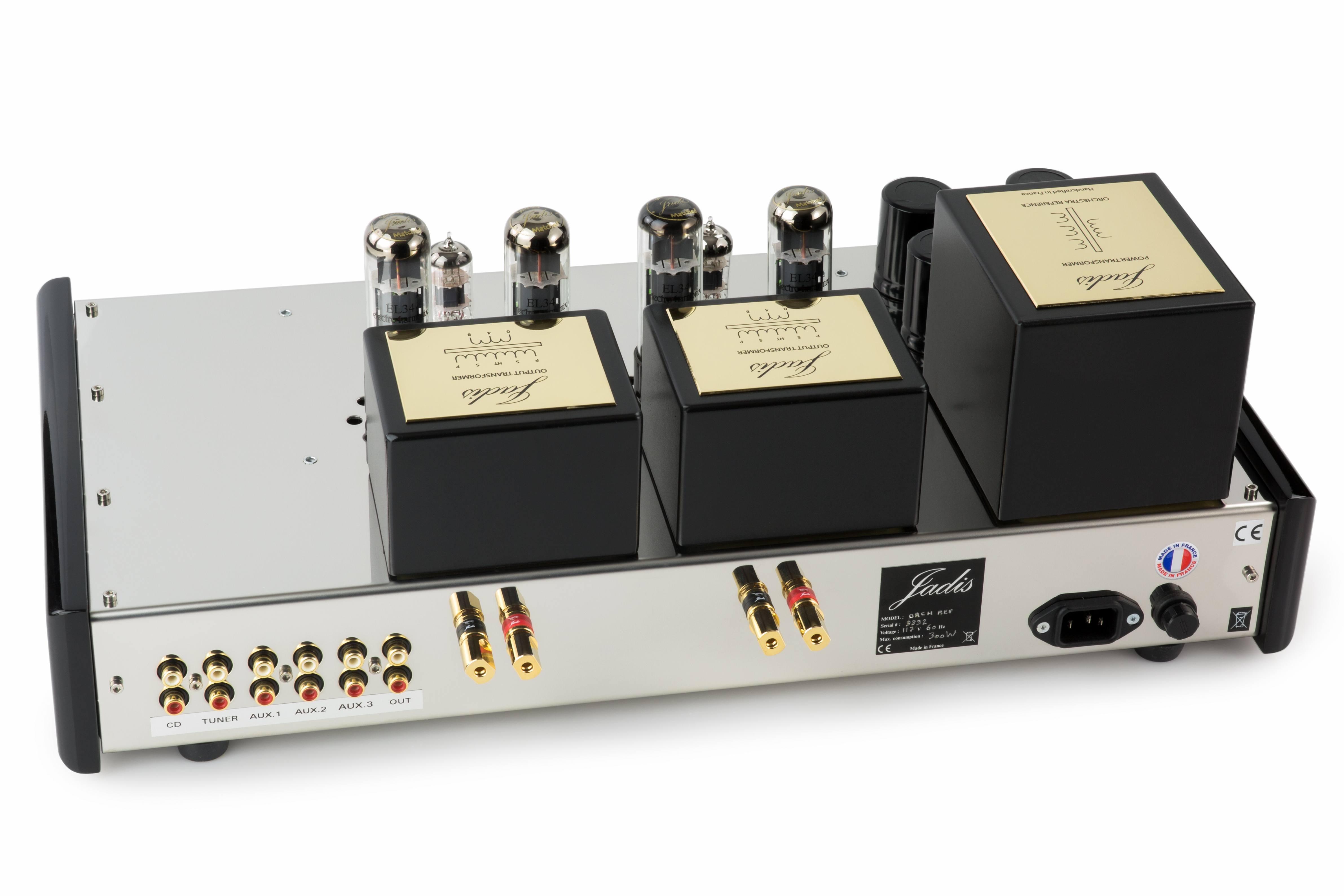

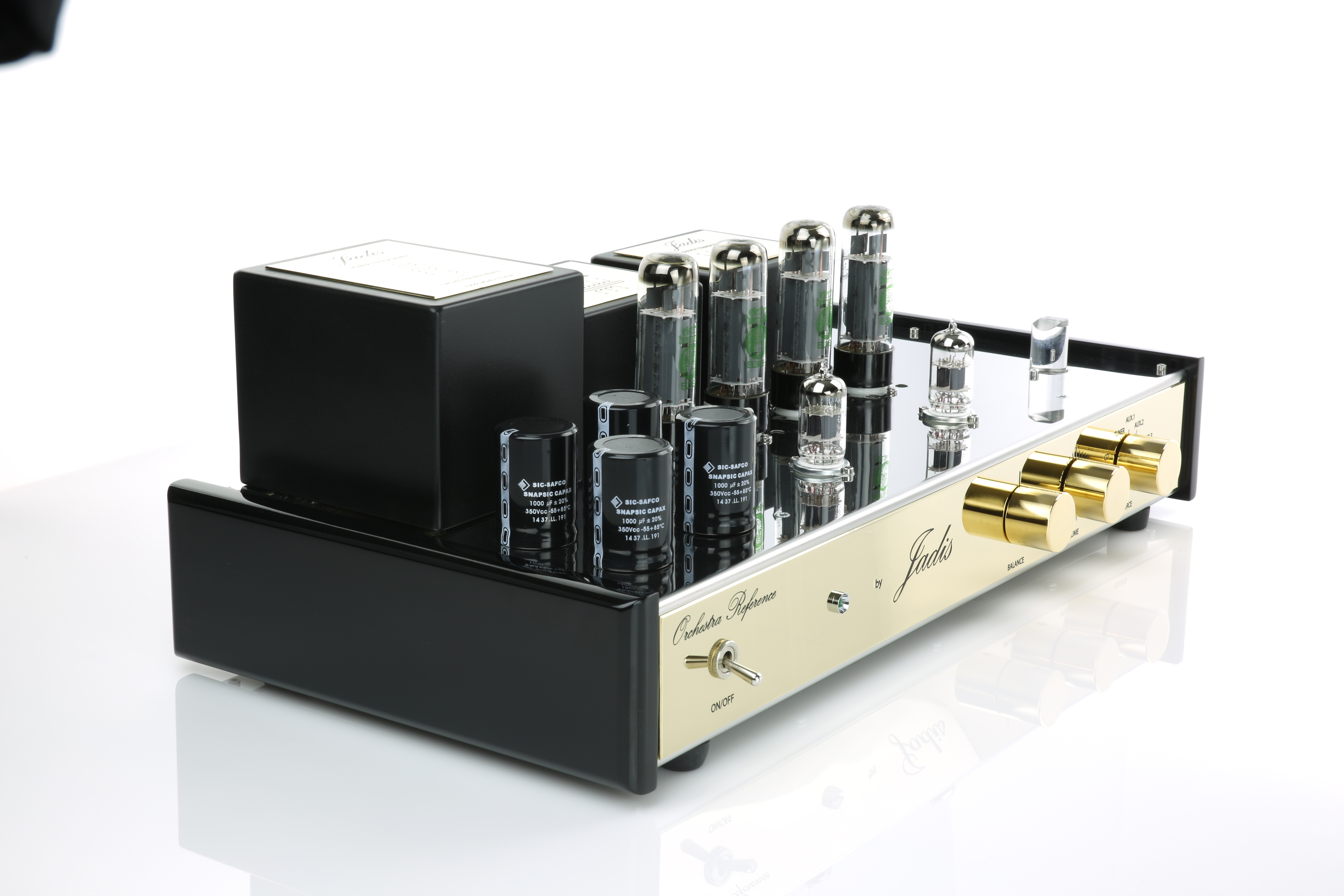

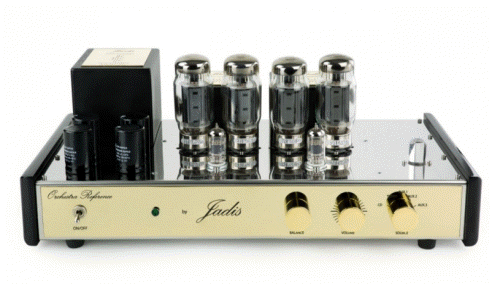

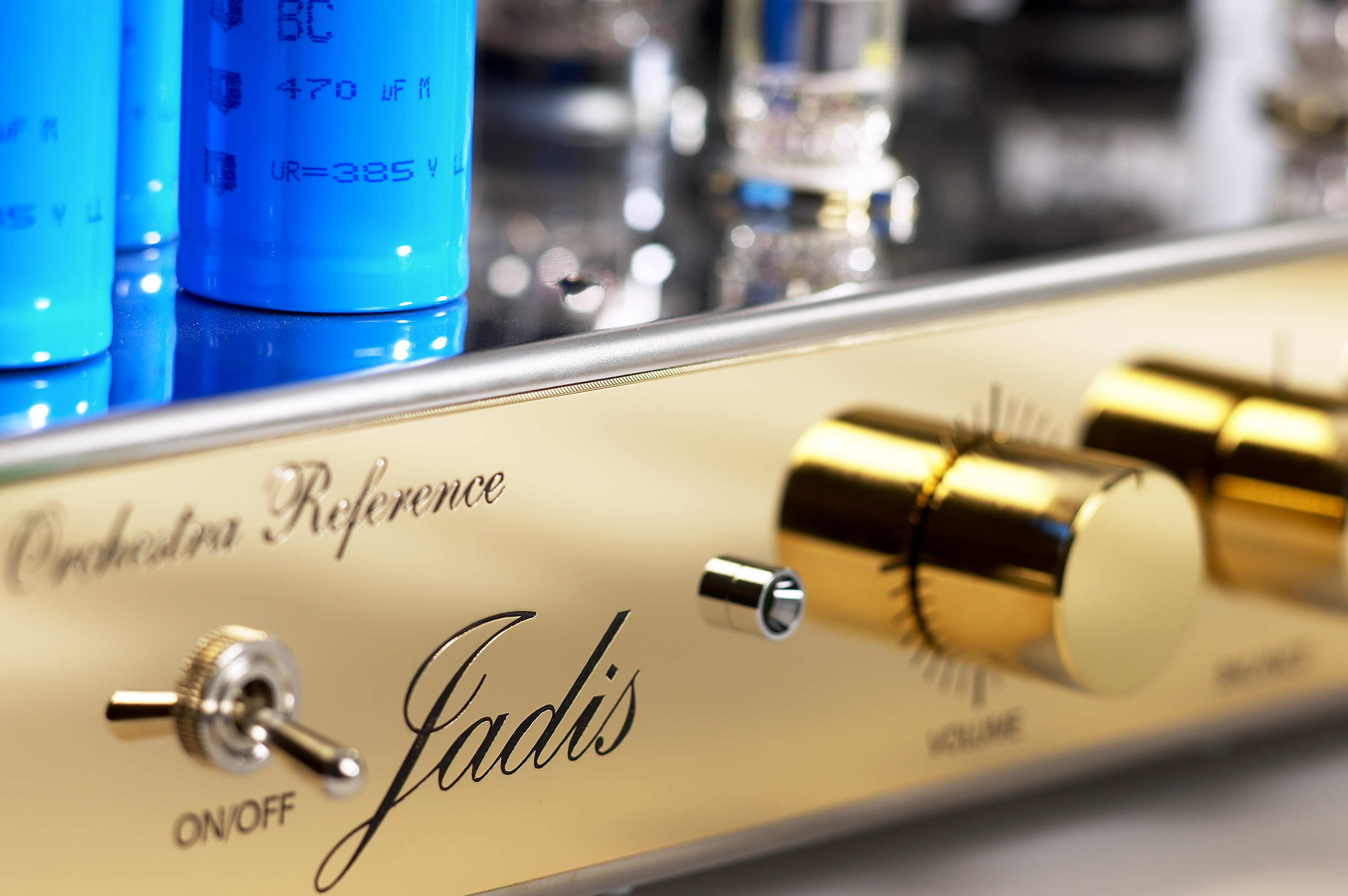

JADIS ORCHESTRA REFERENCE   (Versione EL34/6CA7/KT 88EH)                                           Listino  ufficiale  €. 3.999,00

JADIS ORCHESTRA REFERENCE  (Versione KT 88Genalex /KT120)                                            Listino  ufficiale  €. 4.230,00

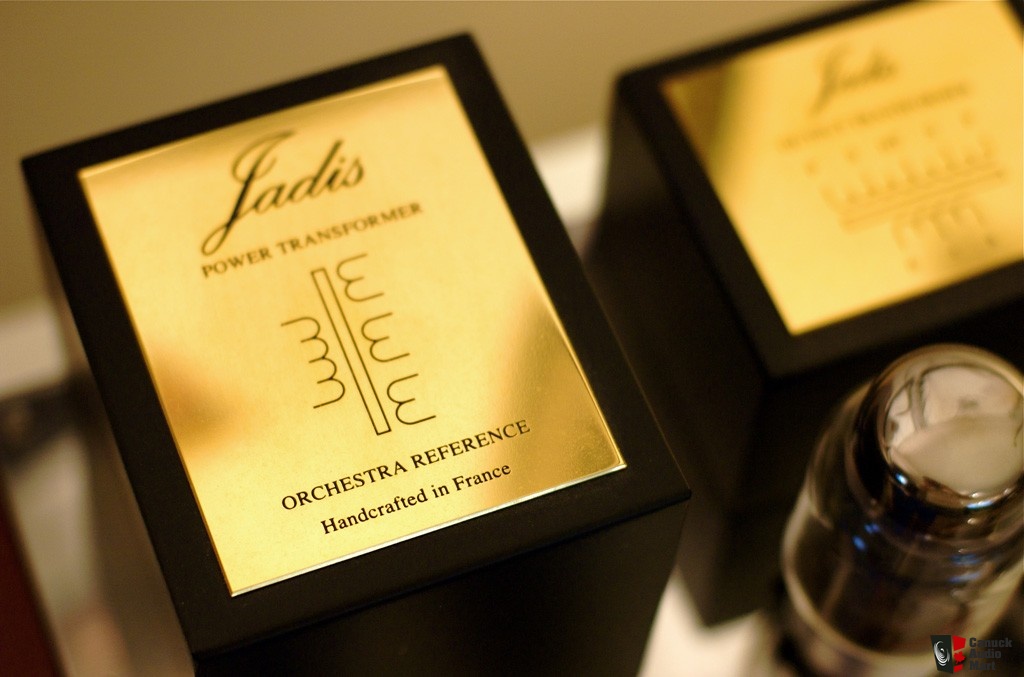

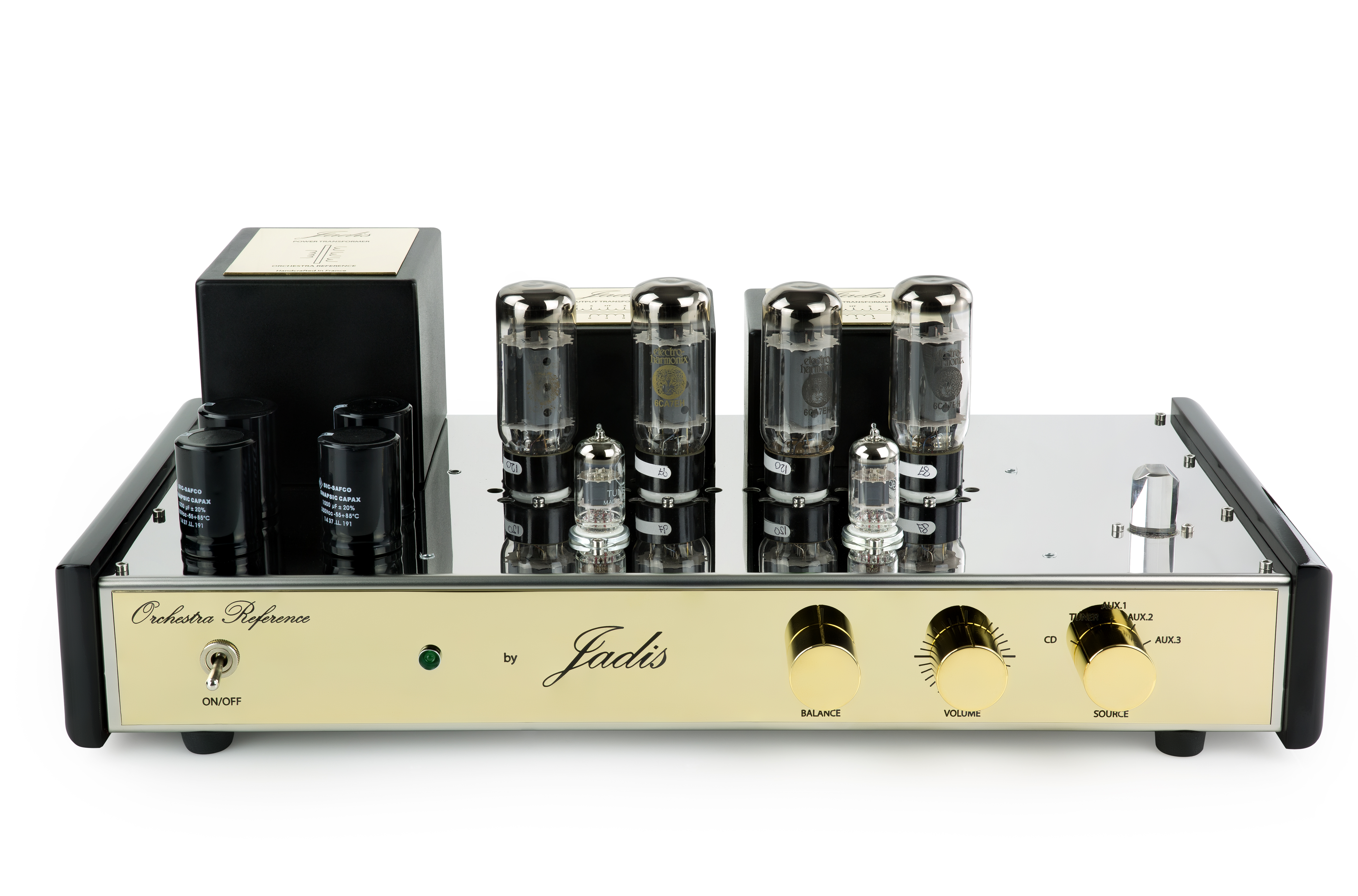

L'orchestra presenta una struttura in acciaio inossidabile non magnetica e pannelli laterali in legno, i tubi sono montati su staffe in ceramica con connettori dorati. Funziona con diverse valvole di potenza funzionanti in Push / Pull e pilotate da due ECC83. Questo dispositivo è il risultato di una vasta ricerca condotta da Jadis, con l'obiettivo di realizzare un prodotto di alta qualità a un prezzo controllato. La versione "Reference" ha un frontale con pulsanti e placche montate sui trasformatori che sono dorati con oro 24 carati. È possibile aggiungere optional i correttori di tono e un telecomando per un maggiore comfort di utilizzo. L'Orchestra Reference possiede un telaio in acciaio inox con valvole montate zoccoli di ceramica con perni d'oro. Dispone di 4 valvole di potenza montate in push-pull che si possono scegliere per personalizzare l' ascolto tra: 4 EL34 /4 6CA7/ 4 KT88 EH e come *optional si possono avere anche 4 KT 88 Genalex/ 4 KT120 mentre le valvole driver sono 2 ECC83 .La versione Reference si puo' richiedere anche in versione colore silver cromata per le piastre frontali e placche superiori .  Specifiche: finale di potenza monoblocco pure in classe A-Bias : Fisso aggiustamento  necessario con  cambio valvole -Potenza :40+40w classe B - Ingressi :5 linea  - Uscite :2 diffusori per bi-wiring- Risposta :5Hz - 60KHz-Telai :1 -Valvole : :  4 EL34 /4 6CA7/ 4 KT88 EH e come *optional si possono avere anche 4 KT 88 Genalex/ 4 KT120 +2 ECC83 -Sensibilita' : 250 mV- Valvole :4 x EL34, 2 x ECC83 -Dimensioni :530x270x200 mm- Peso 20 kg - Consumo: 300w

*OPTIONAL

Telecomando                                                                +399,00  euro

A classic 40 watt EL34 Integrated Amplifier The Jadis Orchestra Reference is a hybrid design featuring a solid state preamp and tube output. The Reference model includes several significant upgrades over the standard Orchestra. As such, the Reference is closer to the rest of the Jadis models but it can still be offered at a price within reach of any music lover. When you combine this classic 40 watt EL34 design with Jadis' custom, hand-made transformers the result is stunning musicality at incredible value ORCHESTRA Reference The Orchestra displays stainless steel chassis with tubes mounted on ceramic sockets with golden pins. It has 4 power tubes mounted in pushpull which are driven by 2 ECC83. This unit is the result of a very thorough study undertaken by Jadis with one main objective: to make a product with all the essential qualities of a highend device at a reasonable price. The "REFERENCE" version provides a golden finish for front plate, better transformers' casing with golden top plates. Tone controls can also be added on demand.This is one of those amplifiers that offer fantastic sound no matter what you play. […] It gives you a perfect sense of space, openness and airiness and a very dynamic sound. You will hear every single note as clearly as possible. When listening to your favorite music with this amp, you truly experience it as if you were witnessing a live performance... "NoiseAddicts" : Jadis Amplifiers: Delicate Warmth of France Type Stereo integrated amplifier with optional remote control Bias Manual Bandwhidth @3dB 5Hz to 60kHz Load impedance 1 to 16 Ω Input impedance >100KΩ Power output 40WclassB Sensitivity 250mV Tubes 4 x KT88/KT90/KT120/6550, 2 x ECC83 Dimensions 53x27x20 cm Consumption 300W Weight 20 kg

"First and foremost, the amp's musical performance was flawless: The Orchestra Reference was as beautifully built as the somewhat more expensive Jadis I-35. Apart from three small circuit boards - the amp is hand-wired, point-to-point. The layout is sensible, the wiring and soldering are impeccably done, and the parts quality ranges from very good to superb.The amp’s sound was richly colorful and beautifully balanced, with very good musical drive. In the long run, I could live with the Orchestra Reference quite happily. For a (mostly) tubed integrated of this performance level to sell for under $5,000 is noteworthy. Rest assured the Jadis Orchestra Reference is extremely unlikely to disappoint. Strongly recommended. Art Dudley, Stereophile"

*Clicca sull' immagine per leggere prova

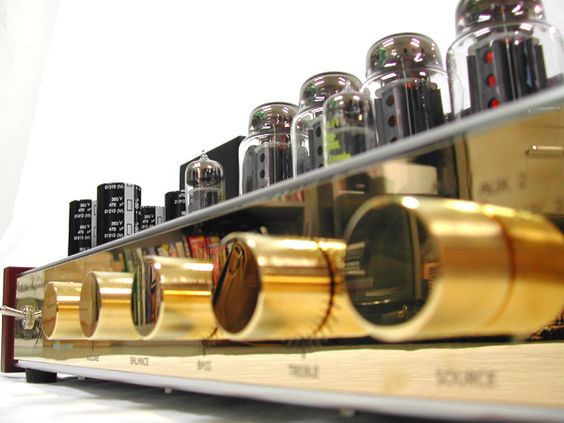

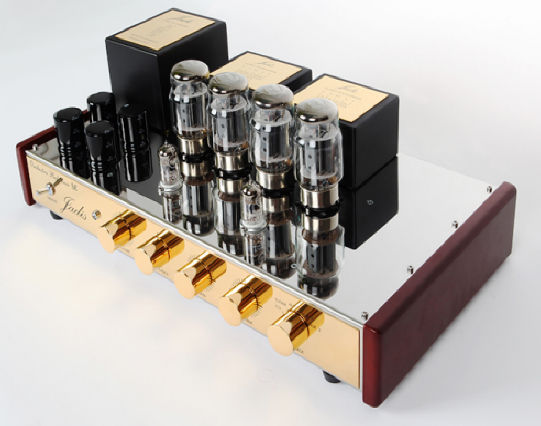

JADIS ORCHESTRA CT REFERENCE   (Versione EL34/6CA7/KT 88EH  con controllo toni )                                           Listino  ufficiale  €. 4.199,00

JADIS ORCHESTRA CT REFERENCE  (Versione KT 88Genalex /KT120 con controllo toni  )                                            Listino  ufficiale  €. 4.399,00

L'orchestra presenta una struttura in acciaio inossidabile non magnetica e pannelli laterali in legno, i tubi sono montati su staffe in ceramica con connettori dorati. Funziona con diverse valvole di potenza funzionanti in Push / Pull e pilotate da due ECC83. Questo dispositivo è il risultato di una vasta ricerca condotta da Jadis, con l'obiettivo di realizzare un prodotto di alta qualità a un prezzo controllato. La versione "Reference" ha un frontale con pulsanti e placche montate sui trasformatori che sono dorati con oro 24 carati. È possibile aggiungere optional i correttori di tono e un telecomando per un maggiore comfort di utilizzo. L'Orchestra Reference CT possiede controlli di tono,un telaio in acciaio inox con valvole montate zoccoli di ceramica con perni d'oro.La versione Reference si puo' richiedere anche in versione colore silver cromata per le piastre frontali e placche superiori .Specifiche: finale di potenza monoblocco pure in classe A-Bias : Fisso aggiustamento  necessario con  cambio valvole -Potenza :40+40w classe B - Ingressi :5 linea  - Uscite :2 diffusori per bi-wiring- Risposta :5Hz - 60KHz-Telai :1 -Valvole : :  4 EL34 /4 6CA7/ 4 KT88 EH e come *optional si possono avere anche 4 KT 88 Genalex/ 4 KT120 +2 ECC83 -Sensibilita' : 250 mV- Valvole :4 x EL34, 2 x ECC83 -Dimensioni :530x270x200 mm- Peso 20 kg - Consumo: 300w

*OPTIONAL

Telecomando                                                                +399,00  euro

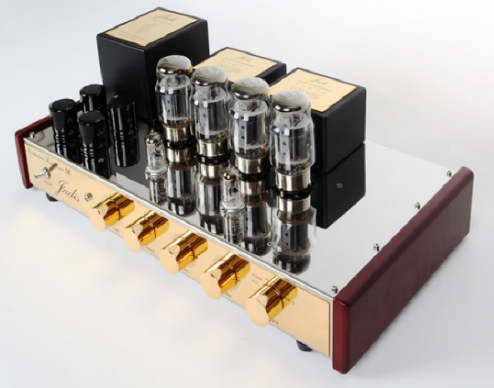

ORCHESTRA Reference with tone controls The Orchestra displays stainless steel chassis with tubes mounted on ceramic sockets with golden pins. It has 4 power tubes mounted in pushpull which are driven by 2 ECC83. This unit is the result of a very thorough study undertaken by Jadis with one main objective: to make a product with all the essential qualities of a highend device at a reasonable price. The "REFERENCE" version provides a golden finish for front plate, better transformers' casing with golden top plates. Tone controls can also be added on demand.This is one of those amplifiers that offer fantastic sound no matter what you play. […] It gives you a perfect sense of space, openness and airiness and a very dynamic sound. You will hear every single note as clearly as possible. When listening to your favorite music with this amp, you truly experience it as if you were witnessing a live performance... "NoiseAddicts" : Jadis Amplifiers: Delicate Warmth of France Type Stereo integrated amplifier with optional remote control Bias Manual Bandwhidth @3dB 5Hz to 60kHz Load impedance 1 to 16 Ω Input impedance >100KΩ Power output 40WclassB Sensitivity 250mV Tubes 4 x KT88/KT90/KT120/6550, 2 x ECC83 Dimensions 53x27x20 cm Consumption 300W Weight 20 kg

"First and foremost, the amp's musical performance was flawless: The Orchestra Reference was as beautifully built as the somewhat more expensive Jadis I-35. Apart from three small circuit boards - the amp is hand-wired, point-to-point. The layout is sensible, the wiring and soldering are impeccably done, and the parts quality ranges from very good to superb.The amp’s sound was richly colorful and beautifully balanced, with very good musical drive. In the long run, I could live with the Orchestra Reference quite happily. For a (mostly) tubed integrated of this performance level to sell for under $5,000 is noteworthy. Rest assured the Jadis Orchestra Reference is extremely unlikely to disappoint. Strongly recommended. Art Dudley, Stereophile"

Web reviews:

http://www.hifilive.es/2014/09/23/jadis-orchestra-reference-se-2



http://www.audiophilia.com/wp/?p=5664



http://hangzasvilag.hu/jadis-orchestra-csoves-sztereo-erosito/







SPECIFICATIONS





Type Integrated amplifier with optional remote control
Bias fixed - have to be adjusted when tubes are changed
Power 40W class-B
Input type 5 line input, 2 speaker output (for bi-wiring)
Bandwidth 5Hz to 60kHz @-3dB
Sensibility 250mV
Number of blocks 1
Tubes list 4 x   EL34/ 6CA7/KT88//KT120 2 x ECC83
Dimensions 53x27x20 cm
Weight 20 kg
Consumption 300W
