JADIS PA100 (Versione  ,EL34/6CA7 KT88 EH)                               Listino  ufficiale  €.  12.900,00

JADIS PA100 (Versione KT 88Genalex /KT120)                             Listino  ufficiale  €.  13.500,00

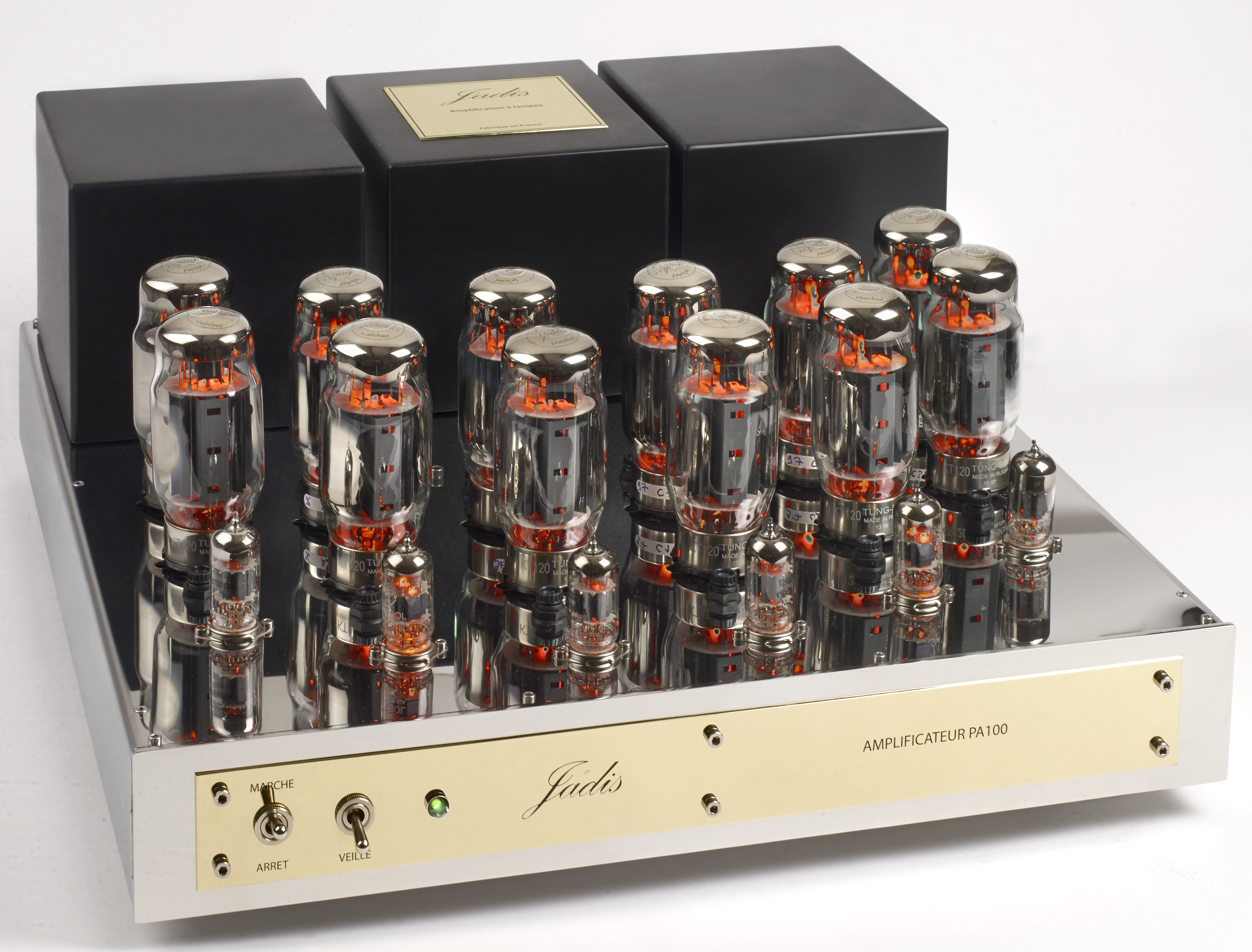

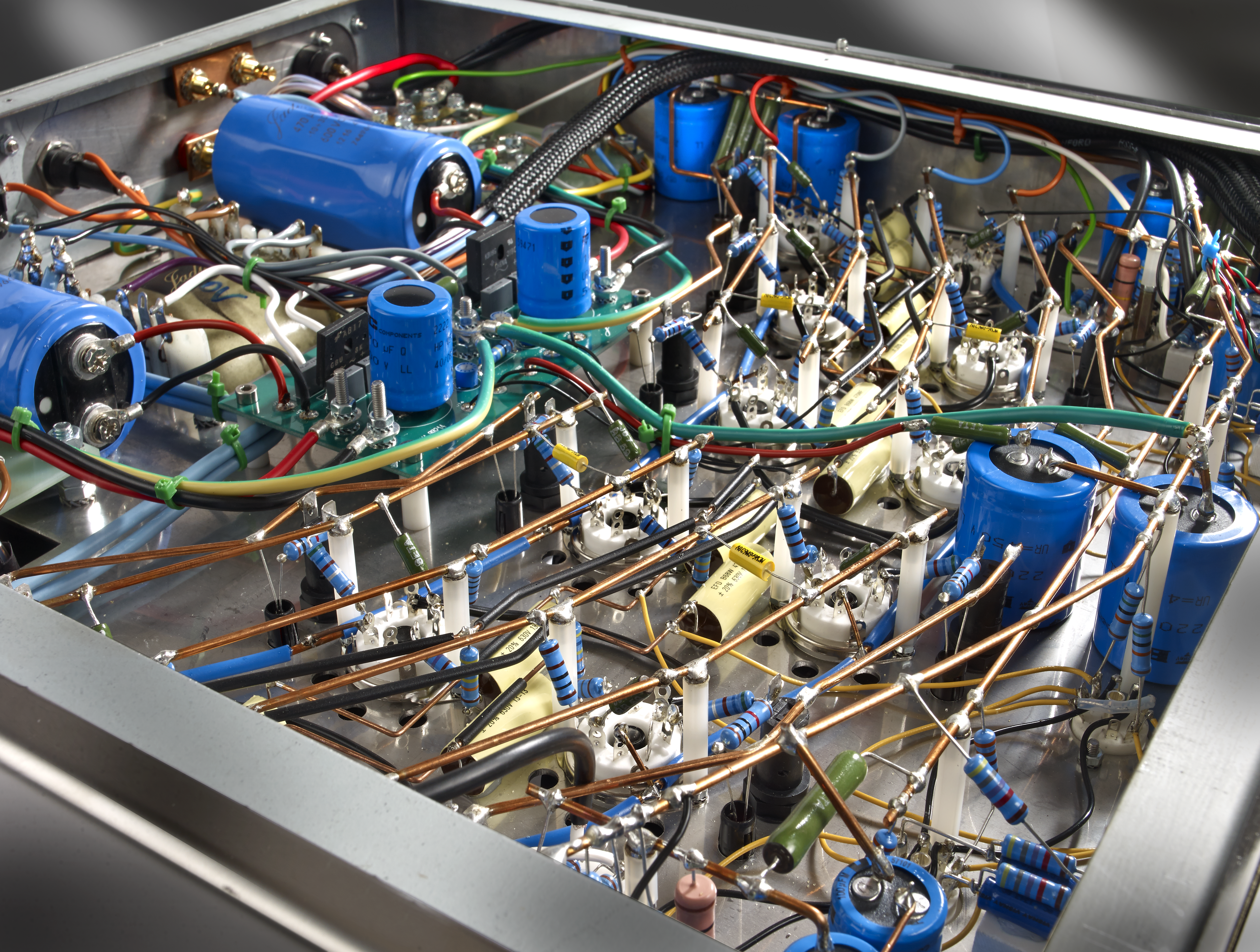

Ultima novita'  di  Jadis  e ' l'amplificatore  di  potenza  stereo PA100 . Il suo stadio di amplificazione ha 12 valvole ed ha una potenza di 150W fino alla classe AB. Il suo design e' il classico jadis   Targa d'oro anteriore, telaio di alta qualità, il cablaggio point-to-point, i trasformatori di uscita di massa e trasformatore di potenza. Per quanto riguarda le unità tutte Jadis 'il PA100 sono  fatte a mano in Villedubert nella regione del Languedoc. Specifiche: finale stereo di potenza in classe AB - Bias : manuale  - Potenza: 150+150 w pura classe AB-Risposta :20Hz - 50KHz-Telai :1 -Sensibilita' :700 mV- Valvole :12 X valvole di potenza 2 X ECC83 4 X ECC82-Dimensioni :495x565x210mm- Peso :29,5 kg - Consumo: 140w

The new Jadis PA100 is a stereo power amplifier that uses 12 power tubes. It produces a total power output of 150W in AB class. At the first sight one can see that this power amplifier is definitely from the Jadis' line of products. Golden front plate, high quality chassis, pointtopoint wiring, massive output and power transformers. As for all Jadis units the PA100 is handcrafted in Villedubert in the Languedoc area.The listening of these electronics are to be remembered as one of the best we were given to listen to. Perhaps not as much defined as signle stage configuration but still really close to it. On the other hand, it takes an uncontested advantage in terms of dynamic and power output. Extremely musical and vivid with an impressing tonal accuracy and punch. No need to focus to unscramble the message as it gets your attention by its communicative realism.Type Stereo power amplifier (balanced or singleended) Bias Manual Bandwidth @3dB 20Hz to 50kHz Power output @1kHz 150WclassAB Sensitivity 700mV Load impedance 1 to 16 Ω Input impedance >100KΩ Number of block 1 Tubes 12 x KT88/KT90/KT120, 4 x ECC83, 2 x ECC82 Dimensions 49.5x56.5x21cm Consumption 500W Weight

References

The PA100 with its comfortable power output will be able to handle any kind of speakers with ease. Wide and deep sound stage. Really pleasant on the medium, it is always a pleasure to listen good vocalize on a Jadis system, it is still the case with the PA100. Bass and treble are also perfectly transcribed. "The listening of these electronics (PA100 & PRE1) is to be remembered as one of the best that we were given to listen. Perhaps not the most refined when compared to direct heating triode single stage configuration but still really close to it. On the other hand, they take an uncontested advantage in terms of dynamic and power output. In the end, this duo is extremely musical and lively with an impressing tonal accuracy and punch. No need to focus to unscramble the message as it gets your attention by its communicative realism". Pierre Fontaine  Stereo Prestige et Image N°95 December 2014



Specifications

Type

AB CLASS POWER AMPLIFIER (Balanced or unbalanced version)

Bias

MANUAL

Power

150W

Bandwidth

20Hz to 50kHz @-3dB

Sensibility

700mV

Number of blocks

1

Tubes list

12 X POWER TUBES (KT88/KT90/KT120) 4 X ECC83 2 X ECC82

Dimensions

49.5x56.5x21cm

Weight

55kg

Consumption

500W
