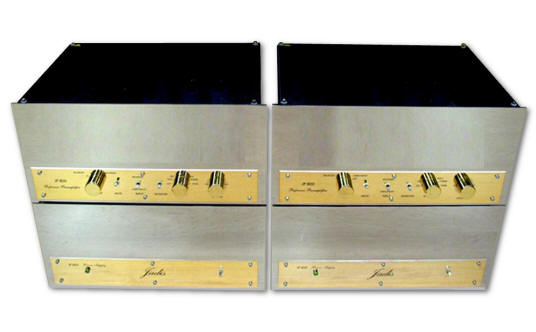

JADIS JP500 MC  2022                                                                                   Listino  ufficiale  €. 49.000,00



La massima espressione della tecnnologia . Pre-amplificatore  linea  con uscita a trasformatori .The JP500 è assolutamente  costruito  seza compromessi al servizio della riproduzione musicale. con ingressi  bilanciati e sbilanciati. 14dB di guadagno, 6 ingressi di linea, 2 uscite. Larghezza di banda 20 Hz - 50 kHz. Valvole : 6 ECC82, 2 ECC83, 2 EF86, 6 EL84. Un commutatore permette all'utente di cambiare la fase . Preamplificatore stereo, costruzione in 4 telai, dual mono,con stadi d'alimentazione separati a valvole. Solo ingressi ad alto Iivello, uscite sbilanciate e bilanciate.Ingressi:5 Linea - Telai :4- Valvole 6 x ECC82 / 2 x ECC83 / 6 x EL 84 / 2 x EF 86 - Misure:440x 330 x 210 mm  ogni telaio- Peso:60 kg - Consumo :250w

The ultimate expression of the art. The JP500 is a four chassis line pre-amplifier with separate power supplies. An absolutely no compromise musical instrument.The JP500 features: built-in balanced or unbalanced operation, 14dB of gain, six line inputs, 2 outputs and switchable polarity. Bandwidth 20 Hz - 50kHz. Tube complement: 6 x ECC82, 2 x ECC83 and 4 x EL84 and in the power supplies 2 x EF86 and 2 x EL84. Weight 135 lbs.As expected from it's looks and specifications the JP500 delivers state-of-the-art sound, it significantly improves any system and lets the best possible sound flow through from the source. The culmination of the quest for perfection.The ultimate expression of the art. Line preamplifier with output transformers. The JP500 is an absolutely no compromises unit at the service of music reproduction. Builtin balanced and unbalanced capability. 14dB of gain, 6 line inputs, 2 outputs. Bandwidth 20 Hz 50kHz. Tube complement: 6 ECC82, 2 ECC83, 2 EF86, 6 EL84. A switch allows the user to change the abolute phase to his convenience.As it can be expected by its look and specifications, the Jadis JP500 sounds absolutely fabulous. It significantly improves any system it is connected to, giving the best from the sources and to the power amplifier. The JP500 is with no doubt the culmination of the quest for perfection. Type Dual mono line preamplifier with separated power supply Gain 20dB Input 6 line, 1 tape monitor, 2 Z adapter Bandwidth @3dB 15Hz 27 KHz (line) RIAA (phono) Input impedance 100KΩ Line Input sensitivity 120 mV Number of block 4 Tubes 2 x ECC83, 6 x ECC82, 4 x EL84 Power supply 2 x EF86, 2 x EL84 Dimensions 43 x 34.5 x 17.5 cm Weight 62 Kg Consumption 250Wper channel


SPECIFICATIONS

Type Dual mono line preamplifier with separated power supply
Gain 20dB
Input type 5 line balanced or unbalanced
Sensibility 120 mV
Bandwidth 15Hz to 27 KHz @-3dB
Number of blocks 4
Tubes list 6 x ecc82 / 2 x ecc83 / 6 x EL 84 / 2 x EF 86
Dimensions 440x 330x 210mm each
Weight 60 kg
Consumption 250 W
