JADIS  JP30MC   MKIII                                                             Listino  ufficiale  €.  10.600,00

La versione MkIII è caratterizzata da vari miglioramenti come l'uso di trasformatori step-up (Lundahl) sullo stadio MC, i tubi regolati ad alta tensione, un nuovo design e nuove caratteristiche del circuito (doppio lato / rame 70μ) e condensatori dello stadio finale appositamente progettati per Jadis. Una nuova versione che darà una bella trasparenza e musicalità al tuo ascolto.   Ingressi:3 linea/1 MM/1MC   /2 uscite- Telai :2- Valvole :6 x ECC83, 1x EF86, 1x EL84- Misure:430x 318 x 171 mm/ 2602x 318 x 171 mm - Peso:25kg - Consumo :40 w

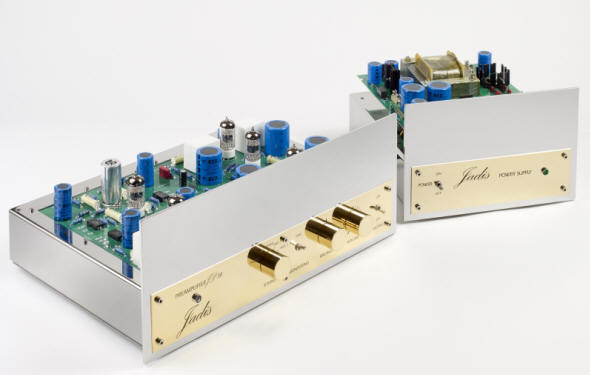

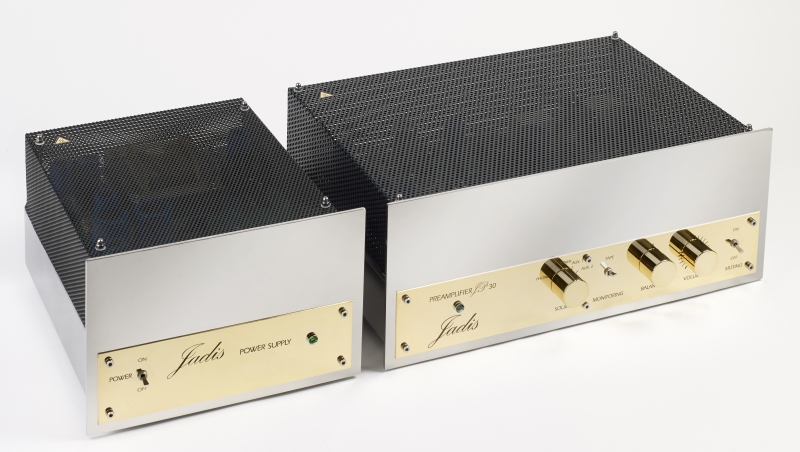

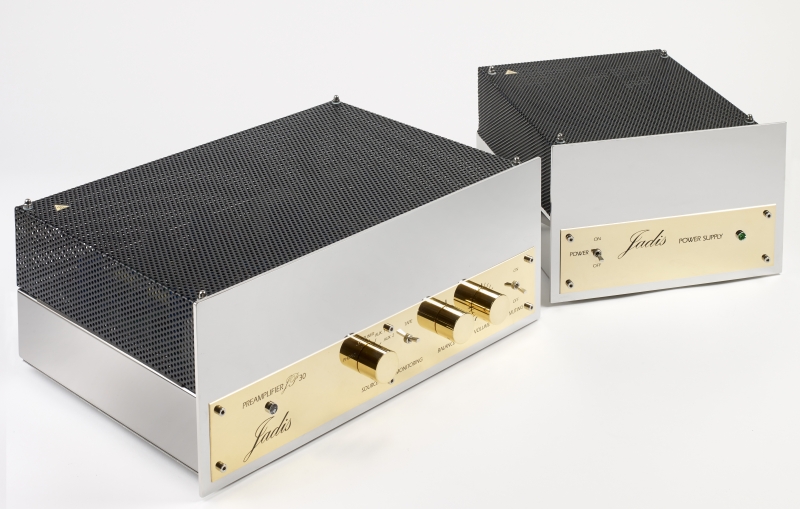

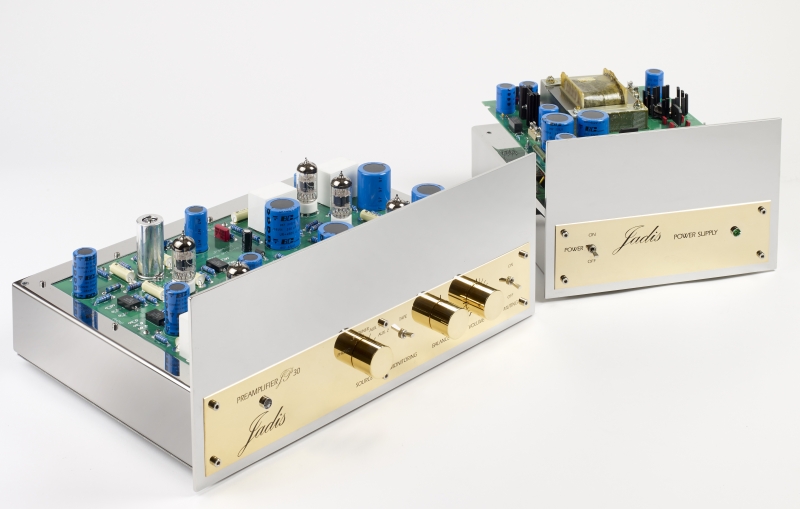

The JP30 MC MkIII features dedicated MM and Lundhal coupled MC phono inputs for outstanding musicality on vinyl listening. Double-sided 70u Heavy copper trace circuit boards optimize signal transparency. The JP30 MC MkIII offers the ability to match gain setting on the various line level inputs and utilizes premium passive parts including select wire and specialized capacitors for optimal fidelity. Other features include: tube regulated power supply, and as will all Jadis; products a non-magnetic stainless-steel chassis and handmade in Villdubert, France,The JP30MC MkIII uses 6 x ECC83, 1 x EF86 and 1 x EL84. It offers three line inputs, and two RIAA phono inputs; one MM and one MC. Gain is 26dB on the line inputs, 59dB on the MM and 80dB on the MC. Bandwidth 5Hz to 75KHz. Two chassis design with a total weight of 55 lbs.Listen to a JP30 MC MkIII today. You're ahead by a century.Specifications Preamplifier MM/MC/Line with separate Power Supply Gain Line Imput :26db/MM:59db/MC:80 db @1kHz Line imput 1MM /1MC/3 Lines Bandwidth Line 5Hz-75Khz Phono RIAA Number block 2 Tubes 6xECC83 ,1xEF86,1xEL84 Dimension power supply 26x31.8x17.1 cm Dimension Pre 43 x 31.8 x 17.1 cm Weight 25 kg Consumption 37 VA

SPECIFICATIONS

Type Preamplifier MM/MC/Line with separate power supply
Gain Line input: 26dB/ MM: 59dB / MC: 80dB @ 1kHz
Input type 1x MM, 1x MC, 3x Lines
Bandwidth Ligne: 5Hz->75 KHz, Phono: RIAA
Number of blocks 2
Tubes list 6 x ECC83, 1x EF86, 1x EL84
Dimensions 26x31.8x17.1 cm Power Supply - 43 x31.8x17.1 cm
Weight 25kg
Consumption 40W
